HAMILTON SA CHOCOLATE MELTER

orCall 847-665-8432

Description

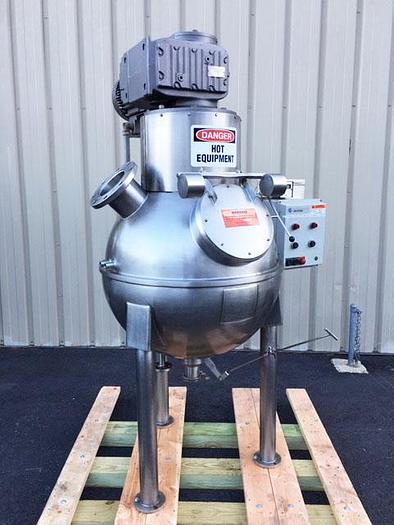

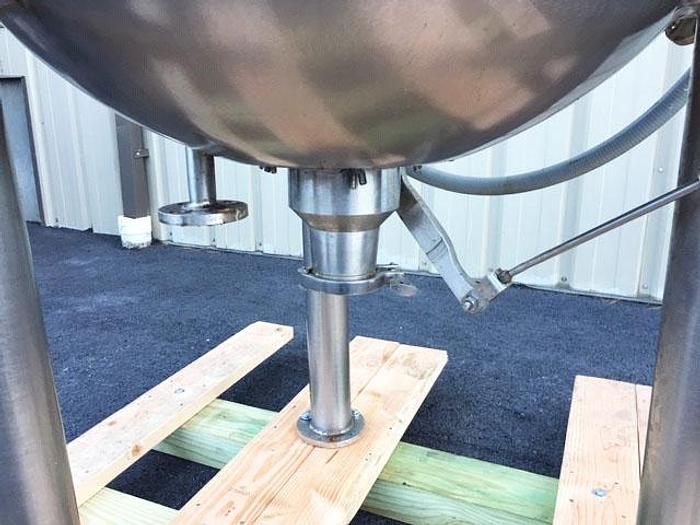

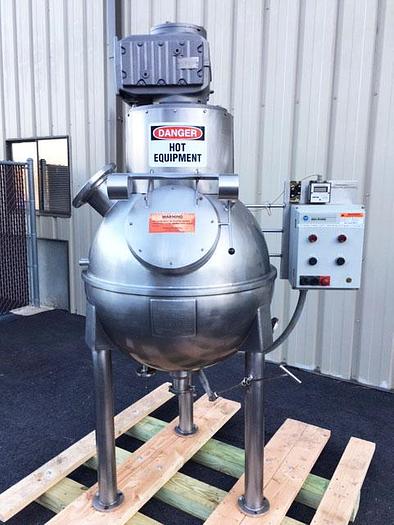

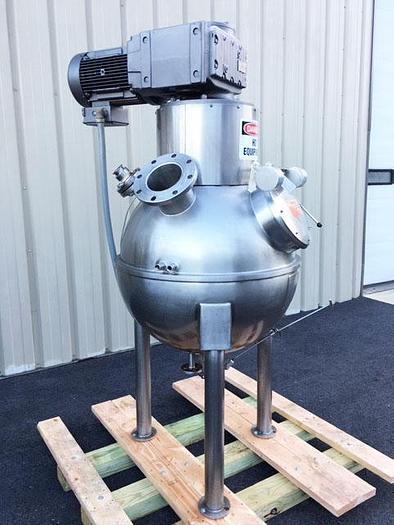

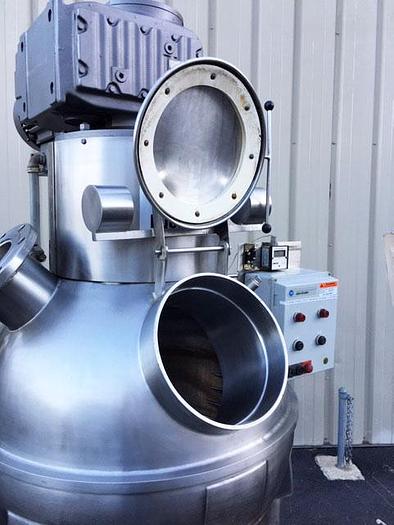

Hamilton 42 Gallon spherical steam jacketed blender kettle. Last used for chocolate and caramel. Stainless steel construction. Jacketed hemispherical bottom and cylindrical sides. Max jacket pressure rating: 125 PSI @ 344 Deg F. Minimum jacket design temperature -20 Deg F @ 125 PSI. (3) top inlets, 2", 4", 6" Triclover Triclamp & Flange styles. 3" bottom outlet with flush mount ball valve and triclover triclamp connection. Distance from floor to bottom, 18". 13" manhole opening with counter-weighted lid. 1" NPT Steam jacket connections. Vessel Dimensions 34" Diameter x 34" Deep. Overall Dimensions 54"L x 54"W x 86"H. Electrical 230V/ 3Ph/ 60Hz. 2-Speed drive motor 3.5 / 7.5 HP, 370/1750 RPM.

Specifications

ManufacturerHamilton
ConditionUsed
Stock NumberB2168
